Coaster Weekender 24V Power Kit (100Ah Lithium & Pre-Cut Loom)

Simplify Your 24V Off-Grid Build

Wiring a bus conversion shouldn't require a degree in electrical engineering. We've spent years engineering, building, and certifying bus conversions at the Ballarat Roadworthy Centre. This Coaster Weekender Power Kit represents the exact component layout and standard of mechanical compliance we use to sign off on safe off-grid builds.

What Makes This Kit the Ultimate Niche Solution?

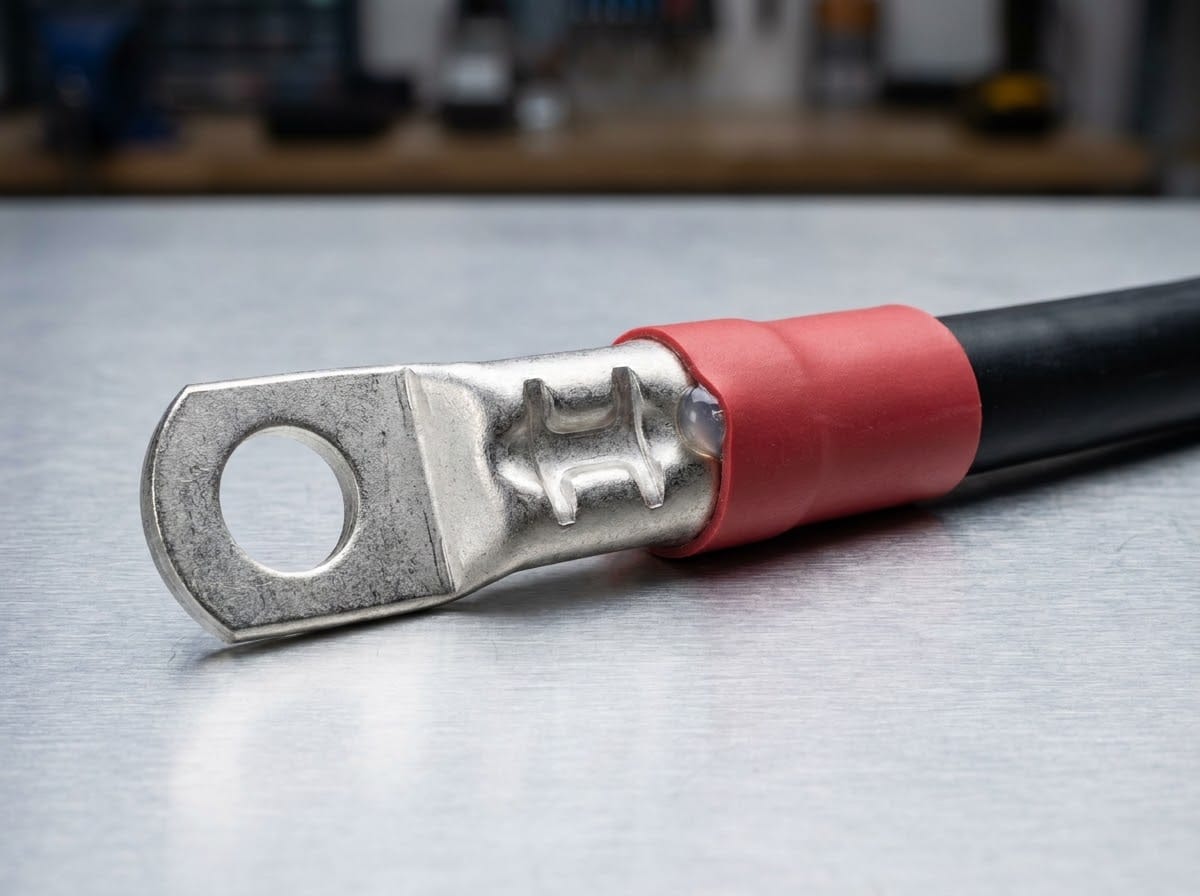

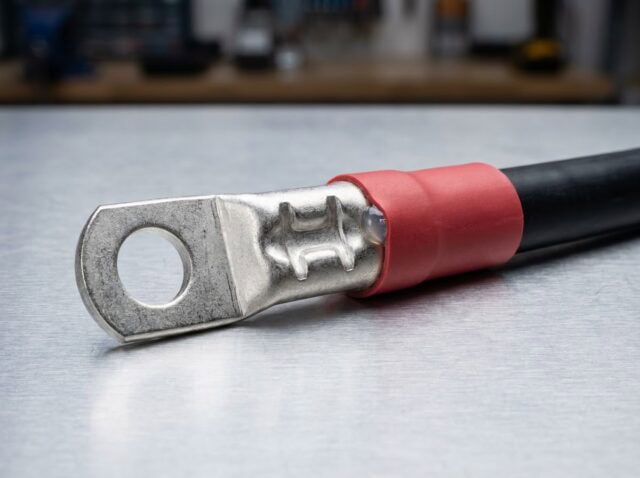

• No Heavy Crimper Required: We supply a fully pre-cut, tinned marine-grade wiring kit. Every lug is hydraulically crimped and sealed with adhesive, glue-lined dual-wall heatshrink right in our workshop.
• High-Efficiency 24V Charging: Halve your currents and reduce cable thickness. This 24V system runs cooler, safer, and more efficiently than old-school 12V equivalents.
• Marine-Grade Durability: Standard auto cables rot over time. Every wire in this bundle is premium, tinned anti-corrosion marine-grade copper.

What's included???

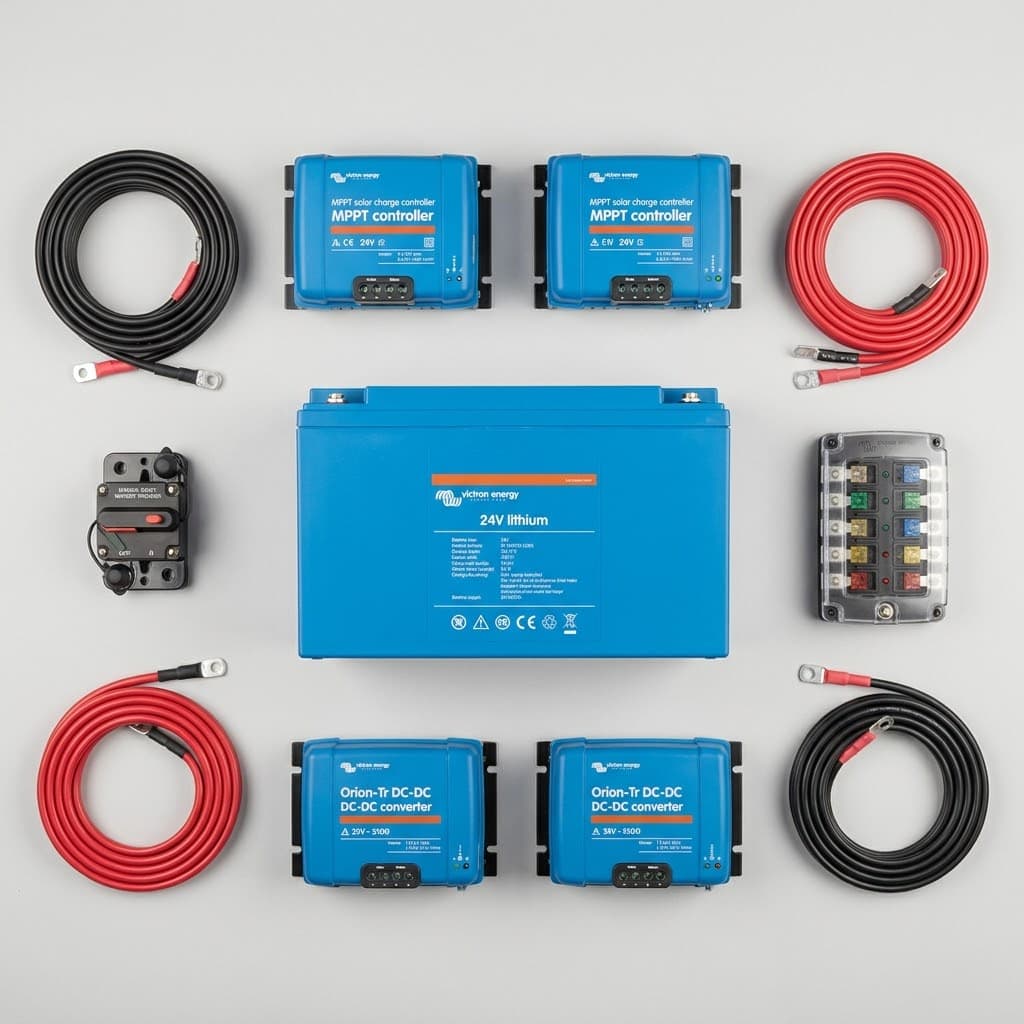

1. The Premium Power Core

• Battery: Victron 24V 100Ah Smart LiFePO4 Lithium Battery with smallBMS.
• DC-DC Alternator Charger: Victron Orion-Tr Smart 24/24-17A Isolated DC-DC Charger — pulls 400W of regulated engine charge while driving.
• Solar Controller: Victron SmartSolar MPPT 100/30 Solar Charge Controller.
• 12V Step-Down Reducer: Victron Orion-Tr 24/12-20A Isolated DC-DC Converter — powers standard 12V compressor fridges, lights, and diesel heaters.
• System Monitor: Victron SmartShunt 500A/50mV IP21 Battery Monitor — real-time Bluetooth battery percentage dashboard on your phone.
• DC Distribution: Victron Busbar 250A 2P with Cover.

2. The Pre-Cut Workshop Wiring Loom

• Battery Interconnects (32mm² / 2 B&S Tinned Cable): 1.5m Red cut into 3x 0.5m segments; 1.0m Black cut into 2x 0.5m segments. Fitted with 10x M8 tinned copper lugs and glue-lined heatshrink.
• Alternator Run (8 B&S Twin-Core Tinned Cable): 5.0m continuous run from starter battery to Orion charger. Fitted with 4x M8 lugs and 4x M6 lugs.
• Solar Lead-In (6mm² Twin Tinned Solar Cable): 8.0m continuous run from roof entry gland to MPPT. Fitted with MC4 connectors on roof end.
• Step-Down Legs (6mm² Twin Tinned Auto Cable): 2.5m cut to feed step-down converter inputs/outputs. Fitted with M8 and M6 terminals.
• Main Battery Safety: Exotronic 120A Surface Mount Waterproof DC Circuit Breaker.
• Alternator Safety: 2x Exotronic 30A Surface Mount Waterproof DC Circuit Breakers (for engine and house protection).
• Cabin Distribution: Exotronic 12-Way Blade Fuse Block with Negative Bus.
• Roof Protection: Exotronic White MC4 Cable Entry Cover Gland block.

Technical Specifications

• Nominal Voltage: 24V DC (stepped down to 12V DC for standard appliances)
• Max Engine Charging Rate: 17A @ 24V (~400W continuous)
• Max Solar Capacity: Up to 880W solar array input natively at 24V
• Total House Battery Capacity: 100Ah @ 25.6V (2.56 kWh usable power)
• Suitability: Toyota Coaster (HB30, HZB30, HZB50, XZB50R, BB50R) and Mitsubishi Rosa platforms
